A Comprehensive Production-Grade Guide to the 7-Layer Retrieval-Augmented Generation Architecture

1. Why Grounding Matters & The Agentic Stack

Large Language Models (LLMs) are incredibly capable, but they suffer from fundamental limitations when deployed within enterprise environments[cite: 1]. A model's outputs are strictly bound by its training data (knowledge cutoff) and the context provided in the prompt[cite: 1]. Without explicit grounding, AI agents frequently return generic, outdated, or confidently wrong answers—commonly known as hallucinations[cite: 1].

Proprietary enterprise data—such as internal leave policies, custom compliance guidelines, or specialized refund rules—will never exist in a public LLM's base training weights[cite: 1]. To build reliable agentic systems, we position Retrieval-Augmented Generation (RAG) as the core grounding layer[cite: 1]. It sits strategically between tool execution and the memory/guardrails layer, providing real-time, context-specific knowledge that takes immediate priority over the model’s internal knowledge weights whenever a conflict occurs[cite: 1].

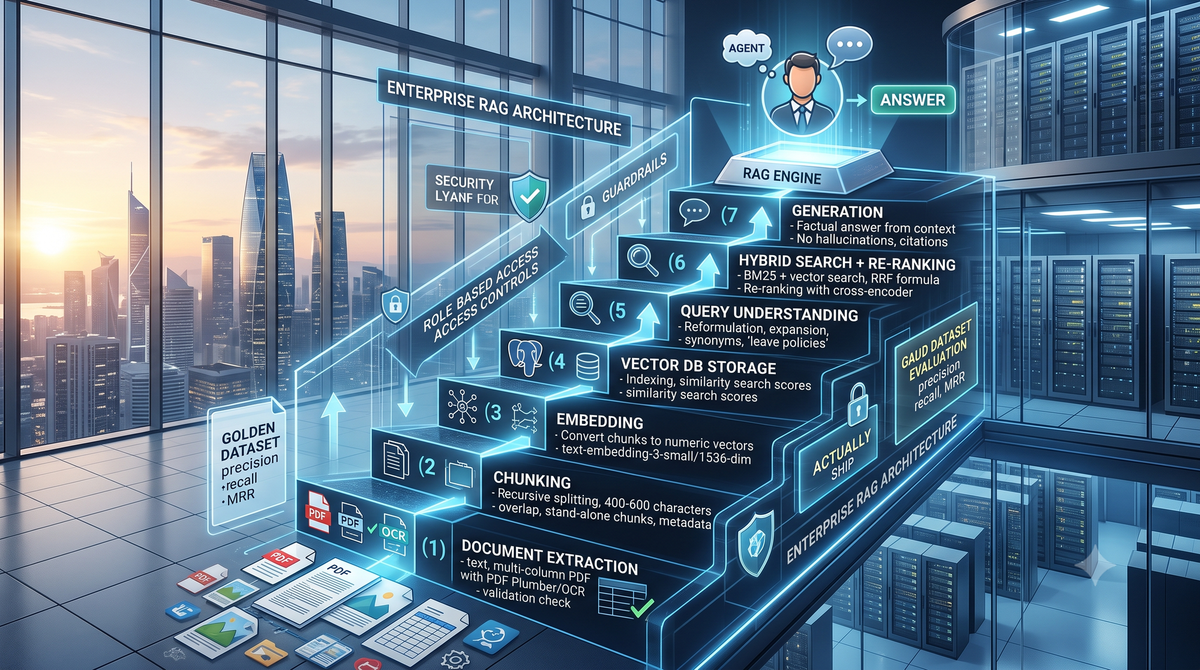

2. The 7 Layers of Enterprise RAG Architecture

Building a production-ready RAG pipeline requires breaking the system down into distinct components[cite: 1, 5]. Testing a few "happy-path" scenarios is insufficient for real-world deployments[cite: 5]. True robustness requires managing and measuring each stage of the data flow[cite: 5]:

1. Document Processing / Extraction: Converting raw documents (PDFs, docs) into clean, uncorrupted machine-readable text[cite: 1].
2. Chunking: Fragmenting extracted text into precise, autonomous units of answerability[cite: 1].
3. Embedding Generation: Transforming text fragments into high-dimensional numerical vectors capturing semantic meaning[cite: 1, 2].
4. Vector Database Storage: Efficient indexing and persistent storage of embeddings and source metadata[cite: 1, 2].
5. Query Understanding: Rewriting, expanding, and validating incoming user requests before executing a search[cite: 4, 5].
6. Hybrid Search + Re-ranking: Combining keyword matching with dense vector retrieval, and normalizing results via a secondary ranking pass[cite: 4].
7. Generation: Passing the perfectly curated, ordered context window to the LLM to formulate an accurate answer[cite: 1, 4].

3. The Ingestion Phase: Extraction & Chunking (Layers 1-2)

Layer 1: Document Extraction

A core principle of enterprise RAG is: An error in Layer 1 cannot be fixed by changes in Layer 7[cite: 1]. Extraction failures are almost always silent; they do not crash the application but instead produce blank or garbled text that cascades through all downstream components[cite: 1].

Multi-column PDFs are a notorious failure point[cite: 1]. Naive extractors often read horizontally straight across the page, stitching completely unrelated content from column A into column B[cite: 1]. To prevent this, enterprise systems prefer libraries like PDF Plumber or specialized open-source tools like Dockling over basic engines like PyPDF2, due to their superior handling of column boundaries and tabular data rows[cite: 1, 6]. For critical deployments, managed cloud solutions (such as Azure Document Intelligence, AWS Textract, or GCP Document AI) represent the safest starting point[cite: 1, 6].

⚠️ Real-World Failure Case: A company ingested a two-column human resources policy PDF[cite: 1]. The layout engine read across columns horizontally, generating nonsensical chunks[cite: 1]. The embedding model mapped this corrupted data perfectly into vector space[cite: 1]. Consequently, user queries retrieved the wrong data, forcing the downstream LLM to hallucinate[cite: 1]. The engineering team wasted hours trying to debug the LLM prompt (Layer 7) before discovering the flaw was entirely inside the parser (Layer 1)[cite: 1].

💡 Automated Quality Validation Check: Implement structural validation during ingestion[cite: 1]. If the non-ASCII character ratio exceeds 30%, flag the document as a failed extraction[cite: 1]. Additionally, enforce deterministic checks for missing spaces, broken tables, incorrect reading orders, and incomplete sentences[cite: 1].

Layer 2: Advanced Chunking Strategy

A text chunk is a unit of answerability[cite: 1]. It must stand alone, answer a targeted question completely, and never separate highly coupled elements like a programmatic label from its assigned value[cite: 1].

• Default Ingestion: Use a RecursiveCharacterTextSplitter as your baseline configuration, transitioning to custom splitting logic for highly specialized domains[cite: 1].
• Sizing Rules of Thumb: Target an optimal size of 400–600 characters per chunk, paired with a 10%–30% overlap (typically 80–120 characters) to avoid context severing across paragraphs[cite: 1].
• Mandatory Chunk Metadata: Every chunk must carry rigid metadata fields: source, page, section, chunk_id, document_hash, document_type, and access_level[cite: 1, 2]. Utilizing document and chunk hashes allows the system to support delta re-indexing—skipping unchanged text blocks and processing only modified sections[cite: 1, 5].

4. Storage, Retrieval, & Core Metrics (Layers 3-4)

Layer 3 & 4: Embeddings and PGVector

Text chunks are translated into mathematical vectors where semantic similarity is captured through proximity in a high-dimensional space[cite: 2]. The standard baseline model recommended for general workloads is OpenAI’s text-embedding-3-small, mapping text to 1536 dimensions[cite: 2]. It is five times cheaper than the larger alternative and highly capable[cite: 2]. Upgrade to text-embedding-3-large (3072 dimensions, 6.5x costlier) only when empirical testing proves the smaller model fails, and the business cost of an incorrect response is extremely high (e.g., medical, legal, or financial fields)[cite: 2, 5].

For enterprise storage, pgvector (a PostgreSQL vector extension) is highly favored[cite: 2]. It integrates vectors natively into a relational database architecture, easily handling up to 10 million vectors while maintaining familiar security and enterprise capabilities[cite: 2]. Similarity matches are measured using Cosine Distance (the inverse of cosine similarity), where a lower distance indicates a smaller angle between vectors, and thus a higher semantic match[cite: 2].

Retrieval Quality Metrics

Retrieval quality cannot be guessed; it must be audited using a human-curated or LLM-assisted Golden Dataset containing explicit query-to-chunk mappings[cite: 2]. This evaluation is performed offline whenever a model, chunking method, or prompt is altered[cite: 2].

• Precision@K: Measures the quality of the retrieved chunks. Of the K blocks returned, what fraction is truly relevant?
• Recall@K: Measures the completeness of the search. Of all true relevant blocks existing in the entire database, what fraction was returned?
• Hit@K: A binary metric indicating whether at least one correct chunk appears inside the top K results.

The Risk Matrix: Increasing K surfaces more text, raising your Recall but introducing noise that drops your Precision[cite: 2]. In fields like healthcare, legal documentation, or insurance, you must actively prioritize Recall to ensure no critical policy or medical clause is omitted, minimizing the risk of high-cost downstream hallucinations[cite: 2].

5. Advanced Retrieval: Hybrid Search, RRF, & Re-ranking

While vector search captures semantic concepts, it has a glaring blind spot: exact-term misses[cite: 3]. If a user inputs a precise serial number, product ID, or specialized error code, vector search may fail to find an exact match because it focuses entirely on conceptual meaning[cite: 2, 3].

To solve this, production pipelines implement Hybrid Search, pairing dense vector retrieval with classic keyword-based sparse search (utilizing the rank_bm25 algorithm)[cite: 4].

Reciprocal Rank Fusion (RRF)

BM25 and vector search produce scores on entirely incompatible scales, making direct combination impossible[cite: 4]. To merge them, we employ the Reciprocal Rank Fusion (RRF) formula, which relies purely on the relative rank positions of a chunk across both result lists rather than its raw score[cite: 4]:

$$RRF_Score(d \in D) = \sum_{m \in M} \frac{1}{K + \text{rank}_m(d)}$$

Where $M$ represents the retrieval methods (Vector and BM25), $\text{rank}_m(d)$ is the position of document $d$ in method $m$, and $K$ is a smoothing constant (typically set to 4)[cite: 4]. Chunks that appear prominently across both lists rise to the top, while single-list outliers sink[cite: 4].

The "Lost in the Middle" Problem & Re-ranking

Even if your hybrid search successfully retrieves the correct context blocks, LLMs suffer from a known structural behavior: they easily process information located at the absolute beginning or end of a long prompt context but frequently ignore facts buried in the middle[cite: 4].

To neutralize this issue, we introduce a Re-ranker Layer[cite: 4]. Instead of passing raw hybrid results directly to the model, the entire combined candidate set is passed through a compact, hyper-optimized Cross-Encoder model (e.g., cross-encoder/ms-marco-MiniLM-L6-v2)[cite: 4]. The cross-encoder explicitly evaluates the deep textual intersection of every single (query, chunk) pair, outputting an absolute relevance score[cite: 4]. The chunks are then completely re-sorted so that the most relevant pieces are surfaced to the top before reaching the LLM[cite: 4].

6. Query Understanding & Pre-Retrieval Access Control

The Query Understanding Layer (Layer 5)

Raw user queries are often messy, informal, or conversational[cite: 5]. Before querying data stores, we run three key optimizations[cite: 5]:

1. Query Reformulation: Cleaning and rewriting conversational history or raw strings into concise, keyword-optimized search statements[cite: 5].
2. Query Expansion: Injecting adjacent synonyms and domain concepts (e.g., mapping "time off" to include "leave, PTO, absence") to broaden retrieval breadth[cite: 2, 5].
3. Intent Validation: Acting as an upfront classifier to verify whether a query falls within the acceptable system domain[cite: 5]. If it is completely out-of-scope, the pipeline terminates immediately with an "I don't know" fallback, bypassing expensive retrieval and generation steps entirely[cite: 5].

The Access Control Architecture Imperative

⚠️ The Security Vulnerability: Standard vector search is blind to user identities[cite: 3]. If an executive salary sheet is embedded into the database, an intern submitting a semantically matching query will seamlessly pull up that text block[cite: 3]. Because the LLM receives perfectly valid context, it generates a clean response[cite: 3]. No application crash occurs, making this silent data leakage invisible to standard output guardrails[cite: 3].

To prevent catastrophic data leakage, access control must be applied as a pre-retrieval metadata filter[cite: 3]. Applying filtering post-retrieval (fetching top-K and then dropping restricted items) is explicitly rejected as an architectural failure, as it can completely empty the context window if the top results happen to be restricted[cite: 3]. User permissions and access tokens must act as rigid constraints directly gating the vector search execution itself[cite: 3].

7. Comprehensive Production Evaluation Framework

RAG evaluation must measure both retrieval precision and the final generated output[cite: 5]. We rely heavily on LLM-as-a-Judge frameworks to automatically calculate key metrics over production traffic[cite: 5]:

8. Breaking Text Barriers: Multimodal RAG (Tables & Images)

Real-world enterprise documents are rarely pure text[cite: 6, 8]. They are saturated with complex, multi-page data tables, workflow diagrams, charts, and embedded images[cite: 6, 8]. Modern architectures use two primary paradigms to capture these components:

The Conversion Approach (Industry Standard)

Due to superior architectural reliability and auditability, the industry heavily favors translating complex visual elements into text during ingestion rather than utilizing raw native multimodal models[cite: 6].

• Table Extraction Pipeline: Use open-source structural engines like Dockling or enterprise APIs to identify table layouts, run OCR cell by cell to prevent column bleed, and normalize output into Markdown or JSON[cite: 6].
• Summary-Based Indexing: Do not embed massive, raw markdown tables directly into your vector database[cite: 6]. Instead, pass the structured table to an LLM to generate a descriptive summary[cite: 6]. Embed this summary text inside the vector database, and store the full structured table in a storage bucket (e.g., AWS S3)[cite: 6]. Save the target S3 URI within the chunk's metadata[cite: 6]. Upon a semantic match on the summary, the system uses the URI to fetch the full table, injecting the complete structured table into the final LLM prompt[cite: 6].
• Multi-Page Tables: Handle continuous data tables spanning across multiple pages by programmatically tracking matching column counts and duplicate header definitions, applying custom stitching rules to fuse fragmented components together before summarization[cite: 6].

Image Orchestration Strategies

When dealing with visual images (diagrams, flowcharts), production pipelines contrast two distinct architectures[cite: 7, 8]:

1. Image Summarization (Cost-Effective Baseline): Images are processed at ingestion via a Vision Language Model (VLM) like GPT-4o Mini or Gemini to create an exhaustive text description[cite: 7]. This summary is embedded normally[cite: 7]. To maintain high fidelity, a Multi-Vector Retriever is implemented: the summary embedding is linked directly to the raw Base64 image string via a shared unique Document ID[cite: 7]. On retrieval, both the text description and the original raw image are fetched and passed together to a downstream VLM[cite: 7].
2. Native Multimodal Retrieval (Alternative): Employs shared latent space embedding models (such as OpenAI CLIP or Google SigLIP) that jointly map both raw images and raw text strings into the exact same vector boundaries without an intermediate summarization step[cite: 7]. While conceptually elegant, this remains complex and harder to scale across enterprise filtering layers compared to text-conversion pipelines[cite: 7].

9. System Maintenance: Prevent Duplicate Indexing

To keep data synchronized without incurring massive computing costs, production systems utilize tools like LangChain's Record Manager[cite: 5]. Writing custom deduplication code is highly discouraged[cite: 5]. The Record Manager tracks explicit SHA-1 document hashes paired with strict operational timestamps across database tables (pg_collection and pg_embedding)[cite: 5].

When a re-indexing routine is triggered, completely unchanged source files are instantly skipped, while modified documents have their outdated chunks precisely targeted, deleted, and replaced—safeguarding system performance and preventing duplicate vector inflation[cite: 5].
